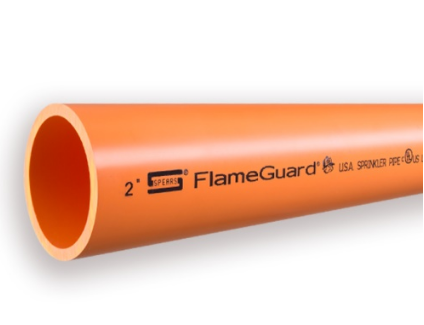

We introduced 'FlameGuard', a cost effective and the most useful fire sprinkler system piping in C-PVC. Manufactured from specially developed C-PVC compound this system is totally free from all the problems that we normally experience with the conventional metal pipe systems. C-PVC fire sprinkler system is based on proven a product that has been in continuous use for over 35 years. The piping system with fittings is approved by UL. This system is also suitable for Aspiration Fire Detection System.

• This corrosion resistant C-PVC material does not encourage biological growth
• Superior flow characteristics for lower friction losses
• Pressure rated to 12 bar (175psi) @ 65°C (150°F)
• Simple and easy installation resulting in lower costs
• UL listed (UL 1821) for NFPA 13, 13R and 13D systems

FlameGuard C-PVC fire sprinkler products are UL listed and suitable for light hazard occupancies as defined in NFPA 13, residential occupancies up to and including 4 - storied buildings as defined in NFPA 13R, residential occupancies for one and two family dwellings and manufactured homes as defined in NFPA 13D. Few examples of light hazard occupancies are given below: -

• Residential buildings excluding parking
• Educational institutes, hotels and hospitals
• 1 or 2 family dwellings

STANDARD & CERTIFICATION
